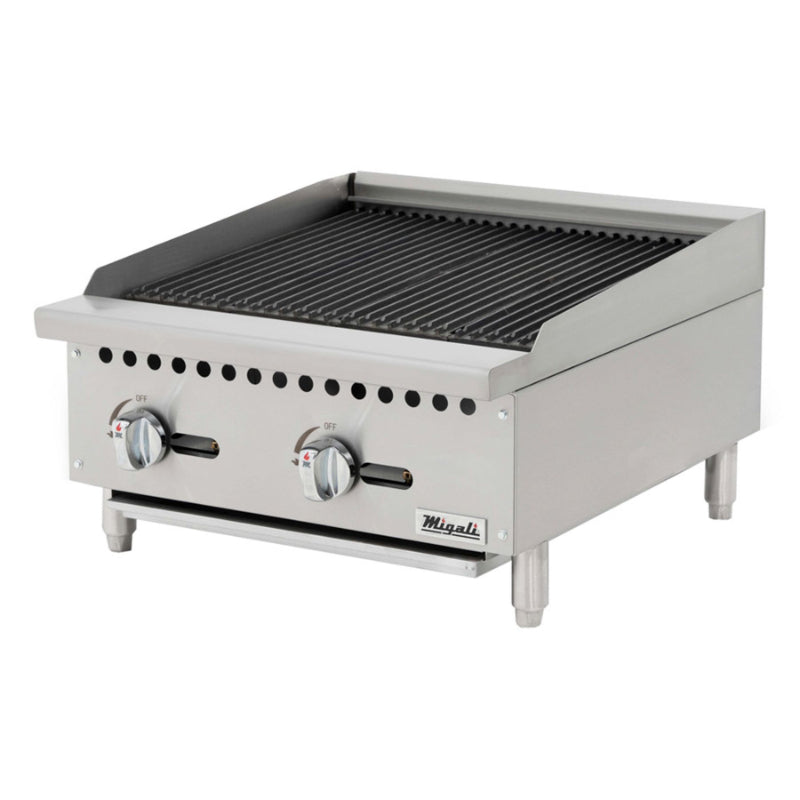

Migali 24″ Wide Radiant Broiler - 70,000 BTU Stainless Steel
Even Heat, Every Time – 24″ Radiant Broiler with 70,000 BTU Power!
The Migali® C-CB24 24″ wide radiant broiler is engineered for high-performance grilling of proteins and vegetables, making it a reliable addition to any commercial kitchen. Designed with heavy-duty, cast iron, reversible cooking grates, this model offers angled sides for both flat and sloped grilling positions—ideal for grease runoff and cooking flexibility.
Its robust U-shaped burners ensure even heat distribution across the radiant surface, delivering consistent and efficient cooking results. With a sleek and durable build, the C-CB24 boasts a high polished stainless steel exterior and interior, (2) chrome temperature control knobs, and adjustable stainless steel legs for a professional, ergonomic finish.
Details
- Each of the (2) “U” shape burners is rated at 35,000 BTUs.
- This model comes standard as a Natural Gas configuration, however, you can easily change to a Liquid Propane configuration by switching out the N.G. orifices with L.P. orifices. Both are provided with every unit.
- Ignition is quick and easy with a continuous pilot.
- These grates have both a flat and wide cooking surface and long and narrow cooking surface. Choose what cooking grate surface is best for your cooking needs.
- Heavy-duty stainless steel rear and side splashes help to keep your working environment clean and safe.
Specifications
Model Details:
- Model: 24″ Wide Radiant Broiler - 70,000 BTU
- UPC: 819296020636
- Series: Competitor Series
Electrical System:
- Power Type: Natural Gas / Liquid Propane
- Total BTU: 70,000
Construction Specifications:
- Exterior Width: 24″
- Exterior Depth: 27.6″
- Exterior Height: 15.2″
- Weight: 117 lbs
Shipping Specifications:
- Shipping Width: 26.8″
- Shipping Depth: 29.9″
- Shipping Height: 18.2″
- Shipping Weight: 147 lbs
More Information:
- Number of Burners: 2
- Control Type: Manual
- Ignition: Manual
- Valve Type: Pilot Light
- Burner BTU: 35,000 per burner
- Working Area: 23.9″ W x 20.2″ D
- Intake-tube Pressure (W.C.) Natural Gas: 4
- Intake-tube Pressure (W.C.) LP: 10
- Nozzle Number Natural Gas: #36
- Nozzle Number LP: #50
- Gas Inlet Size: 3/4″
- Number of Controls: 2
Manuals
-
Product Manual for Radiant Broilers Size: (2.11 MB)
-
Specifications for Radiant Broilers Size: (5.49 MB)
-
Cooking Warranty Size: (228.64 KB)
